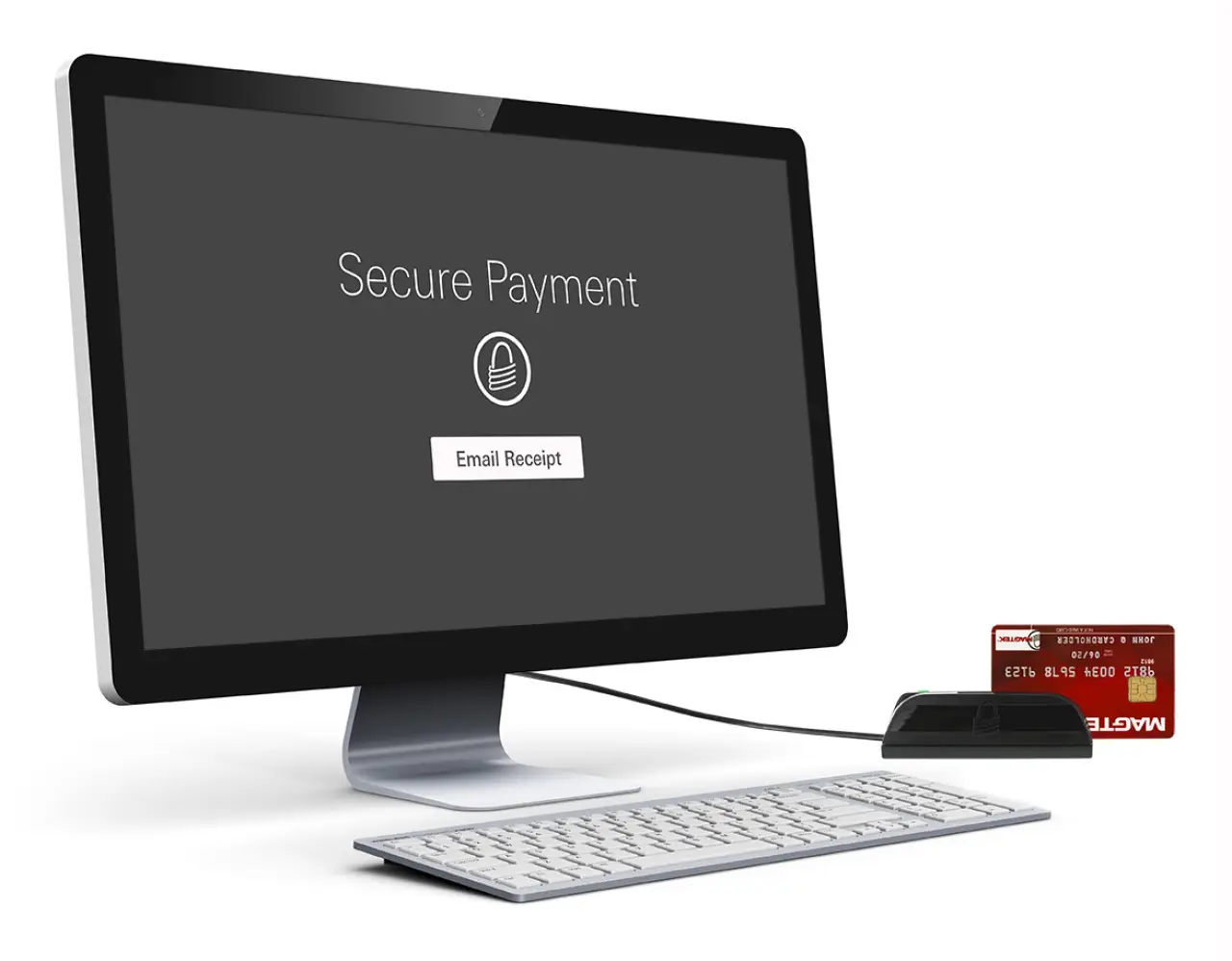

USB magnetic stripe swipe card reader, ready for secure payments and digital transactions

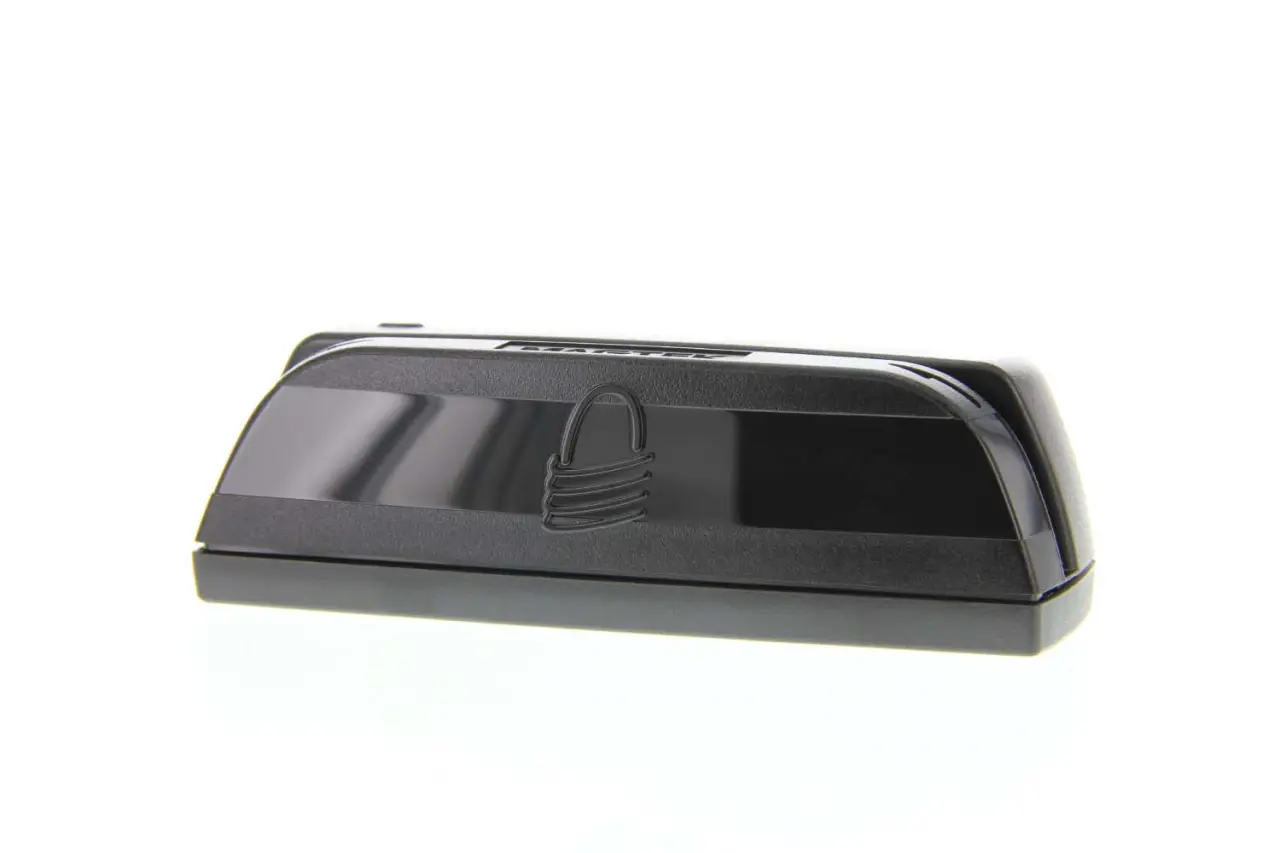

Windows Plug & Play MagStripe Credit Card Reader
Dynamag card reader supports USB HID or USB Keyboard emulation interfaces and is powered and connected via USB. Compatible operating systems: Windows and Android HID and KB mode. Mac OS in KB mode.

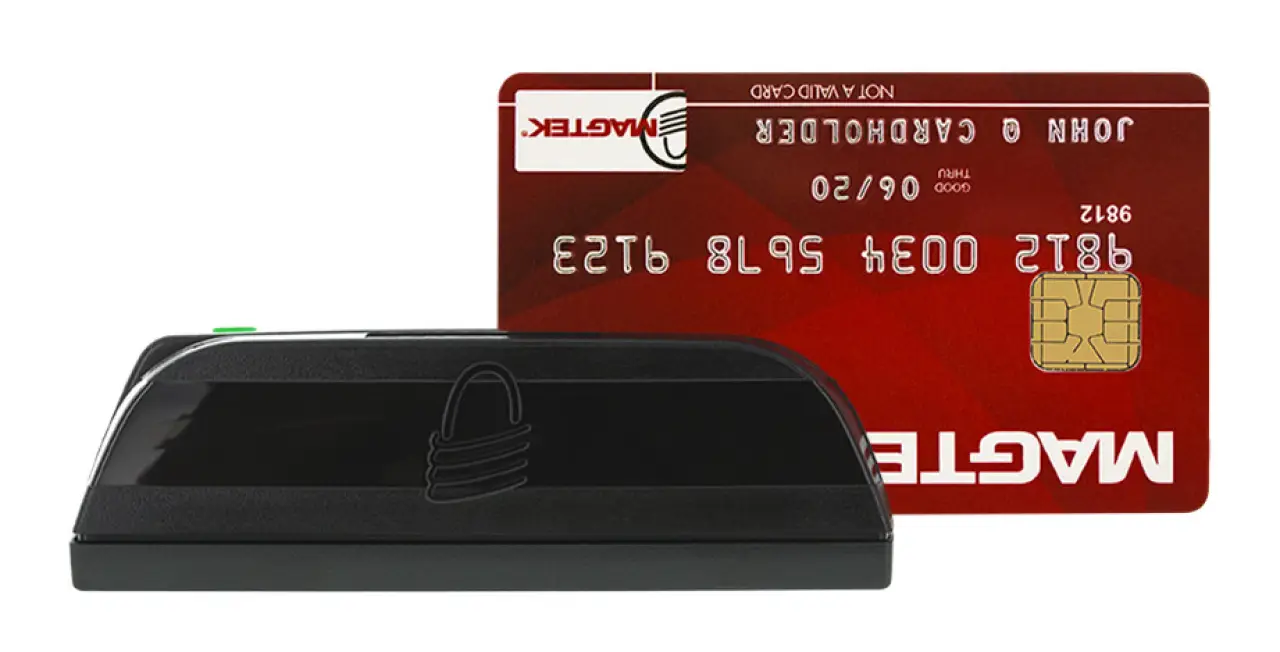

Reliable and Small Credit Card Reader
Just under 4 inches, Dynamag saves space on the countertop or in your custom build and still provides a long swipe path.

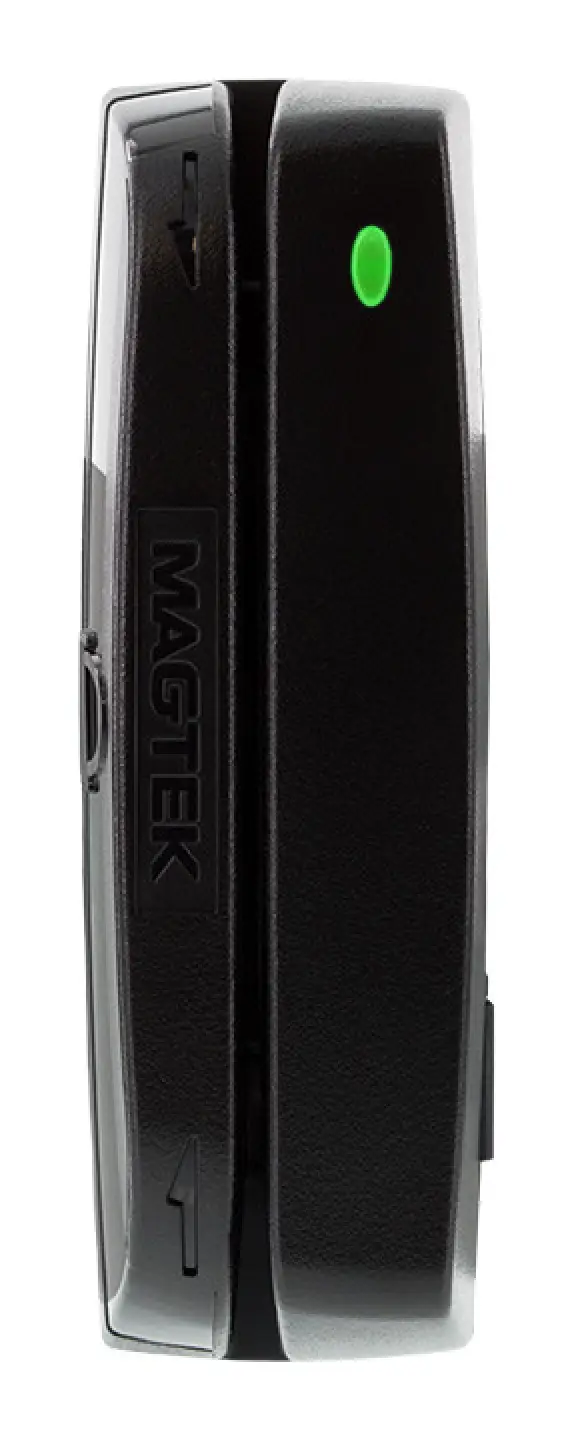

Magnetic Swipe Card Reader with Simple to Understand LEDs
The Red/Green/Amber LED status indicator keeps you in the know.
Secured by the MagneSafe Security Architecture
MagneSafe® is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.
Card Reader Head with Highest First Swipe Read Rate
MagTek readers have one of the highest first swipe read rates in the industry. This enables you to develop reliable hardware and systems that move lines faster and makes your customers happy.
Standard Configurations
| Description | P/N |
| Black, USB swipe card reader, USB KB | 21073062 |
| Black, USB swipe card reader, HID | 21073075 |
| Black, USB swipe card reader, USB, unencrypted | 21073145 |
General Information
| Interfaces | USB HID USB Keyboard Emulation |
| Color | Black |
| Reference Standards | ISO 7810, ISO 7811, AAMVA |
| Card Speed | 6 to 60 ips (15.4 to 152.4 cm/s) |
Electrical
| Power Input | 5V from USB bus |
| Current | |
| Normal mode | 100 mA maximum |
| Suspend Mode | 500 uA maximum |
Mechanical
| Dimensions | Length: 3.92 in. (99.5mm) Width: 1.24 in. (31.6mm) Height: 1.20 in. (30.4mm) |
| Weight | 1.8 oz. (50 gr) |
| Cable Length | 6 ft. |
| Connector | USB Type A plug |
Environmental
| Temperature | |
| Operating | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity | |
| Operating | 10% to 90% noncondensing |
| Storage | 10% to 90% noncondensing |
