MICRSafe

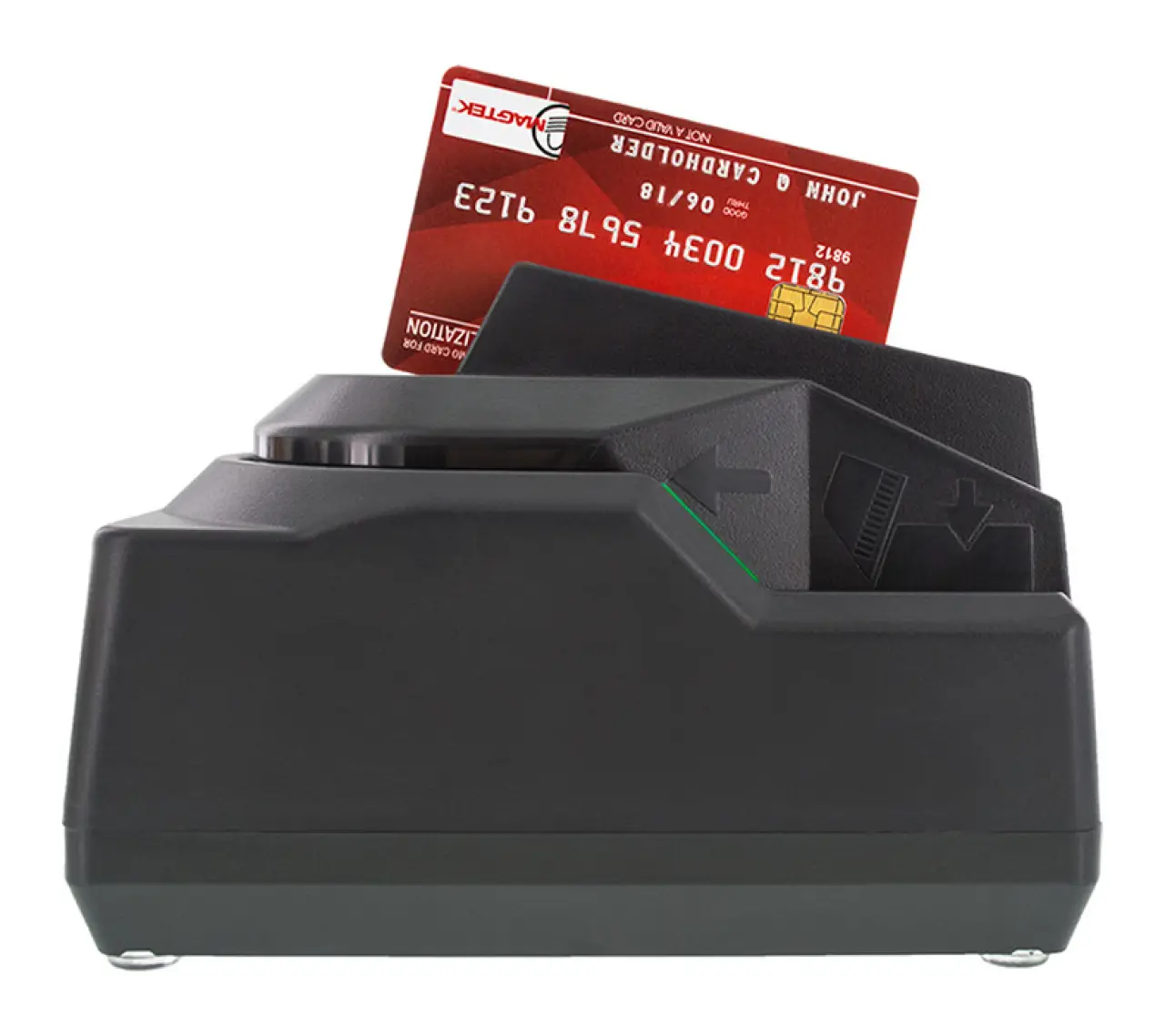

MICRSafe has the unique ability to encrypt both the scanned check data and the data from the integrated secure card reader authenticator
Magnetic Ink Character Reader (MICR) with 3-Track Integrated SCRA
Reads and encrypts card data at the point of swipe for cards that adhere to standard ISO and AAMVA requirements, including credit and debit cards.
MICR Device with Single Check Feed
Optimized to reduce transaction time and manual entry errors, MICRSafe is a single-feed MICR reader with a reliable and durable design.
MICR that Reads the Necessary Data
In a single pass, MICRSafe reads E13B and CMC7 MICR fonts for greater acceptance.
Connect your MICR Easily

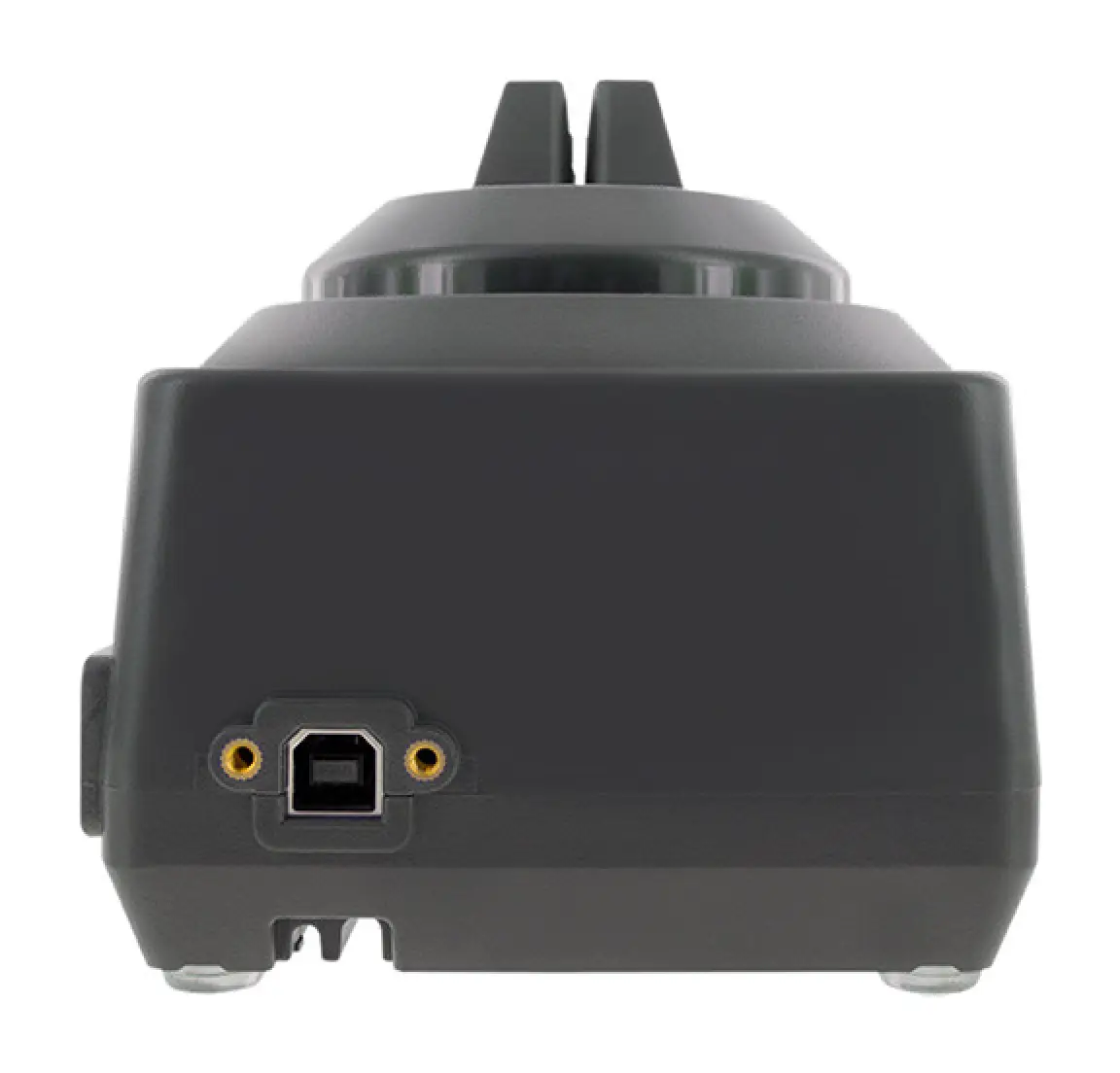

Ideal for retail applications where fast and accurate MICR reading is required, the MICRSafe offers a range of interface options, including connectivity to the most popular POS terminals. MICRSafe connects to POS terminals through RS-232 AUX and USB interfaces. Compatible operating systems include Windows HID; Android, Linux, Mac OS, and Windows in KB mode.
Secured by the MagneSafe Security Architecture
MagneSafe® is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.
Imaging
| MICR Encryption | Yes |
| Magstripe Reader | SCRA 3TK |
| Printer | No |
| Scanner | No |
| Image Rendition | NA |
| Image Compression | NA |
| Image Resolution | NA |
| Check Capacity | Single Feed |
Specifications
| MTBF | |
| Electronics | 125,000 hrs |
| Check Read Head | 1 MILLION PASSES |
| MSR Read Head | 1 MILLION PASSES |
| Document Size |
|
| MICR Fonts | E13-B and CMC-7 |
| Interface | USB; USB KB, RS232 Aux |
| Current | 600mA (Operating) |
| Voltage | 12 VDC, 1.5 Amps |
| Mechanical | |
| Dimensions |
Height: 4.25 in Width: 4.0 in Length: 6.25 in |
| Weight | 3.0 lbs |
| Environmental | |
| Temperature |
Operating: 0°C to 50°C (32°F to 122°F) Storage: -30°C to 60°C (-22°F to 140°F) |
| Humidity |
Operating: 10% to 90% noncondensing Storage: Up to 95% noncondensing |
| Altitude |
Operating: 0 -10,000 ft (0 - 3,048m) Storage: 0 - 50,000 ft (0 - 15,240m) |
