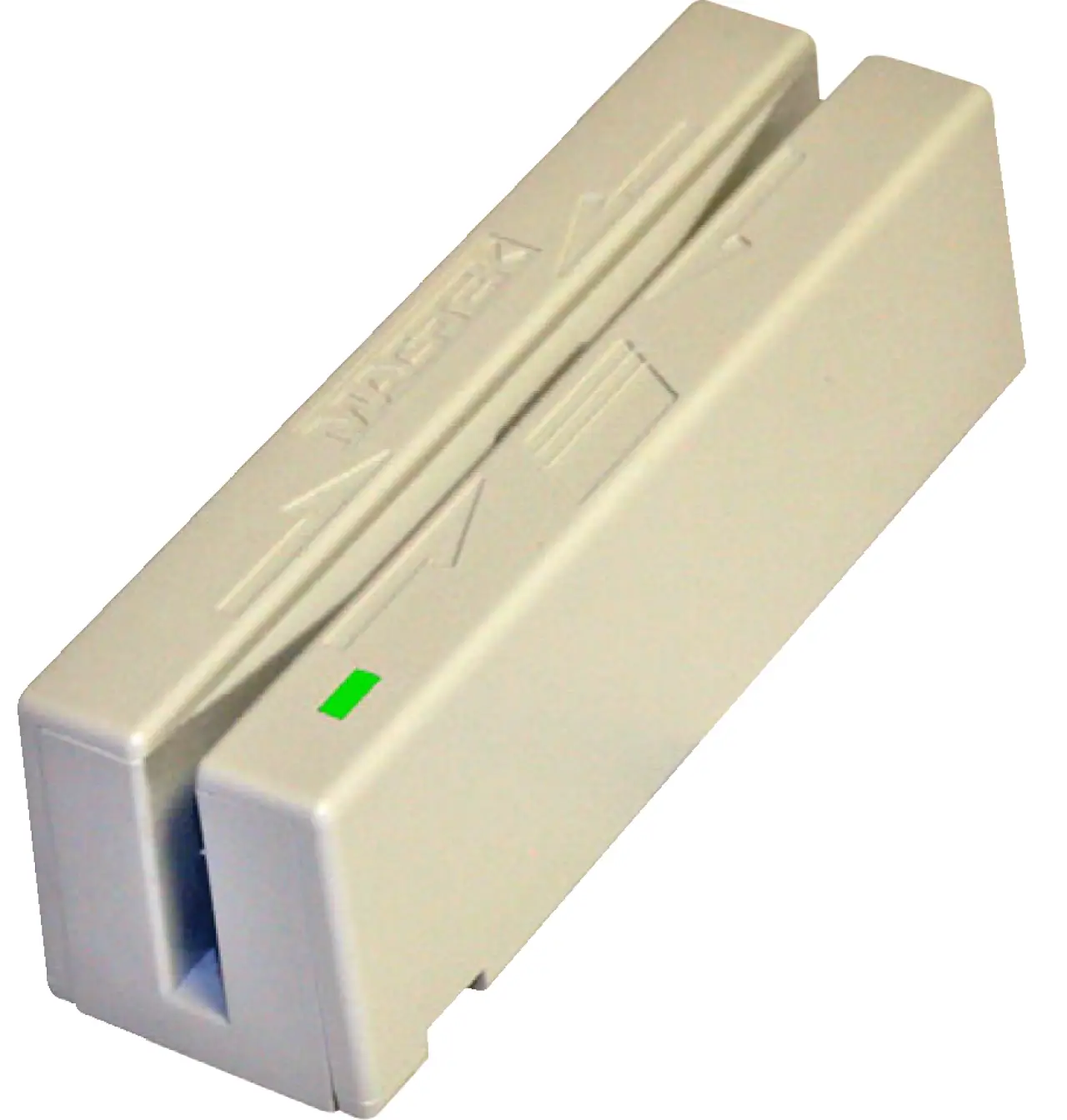

SureSwipe MSR

Two Heads Are Better Than One

Introducing the Industry’s first stand-alone Magnetic Stripe Reader (MSR) with T WO Magnetic Heads designed to reduce confusion at the Point of Sale.

Featuring a 3-track bi-directional dual sided magnetic reader, the SureSwipe MSR was designed specifically to read any magnetic stripe card regardless of which way the magnetic stripe is facing when swiped. With a 99.9% accuracy rate, the SureSwipe MSR ensures the card data will be read on the first swipe every time.

  • The SureSwipe MSR ensures the card data will be read on the first swipe every time.

  • Compatible with MagTek’s existing USB MSR readers.

  • Designed and configured to interface seamlessly with leading electronic cash registers, POS terminals and other USB devices.

  • An LED indicator on the top of the reader provides the operator with continuous status of the reader operations.

  • Captures 3 tracks of data from all ISO- and AAMVA-encoded magnetic stripe cards.

  • Available in standard HID and Keyboard Emulation modes.

Standard Configurations

Reference Standards ISO 7810 and ISO 7811/AAMVA
Power Input 5V from USB bus
Recording Method Two-frequency coherent phase (F2F)
Message Format ASCII
Card Speed 3 - 60 i.p.s. (7,62 - 152,4 cm/s)


Current Normal: 15 mA
Suspend Mode: 200 uA


Size Length: 3.94 in (100 mm)
Width: 1,28 in (32,5 mm)
Height: 1.23 in (31,3 mm)
Weight 4.5 oz (127,57 g)
Cable Length 6 ft (1,8 m)
Connector USB Type A plug


Temperature Operating: -40 ̊F - 158 ̊F (-40 ̊C - 70 ̊C)
Storage: -40 ̊F - 158 ̊F (-40 ̊C - 70 ̊C)
Humidity Operating: 10% - 90% noncondensing
Storage: 10% - 90% noncondensing
Altitude Operating: 0 - 10,000 ft (0 - 2,048 m)
Storage: 0 - 50,000 ft (0 - 15,240 m)
